- Eurochain VX
- Eurochain VR
LOREM IPSUM
Electric Chain Hoist
An electric chain hoist equipment for lifting 63 kg to 10,000 kg of material load.
Eurochain VX / VX-S – VR / VR Vario For Loads From 63 to 10,000 kg
Our new VERLINDE electric chain hoist is used to carry loads from 63 to 10,000 kg. After two years of design and production, this next-level chain hoist is presented in the new series of lightweight lifting solutions.
Technical Characteristics
- Height of lift 3 m
- Bracket suspension for the suspended hoist
- 2 hoisting speeds
- Safety limit switches for upper & lower positions
- IP55 hoisting & travelling motor protection
- Load chain galvanised
- Control cable 2,5 m
- 2-button pendant for hook-suspended hoist or manual trolley
- 4 buttons pendant for hoist with electric trolley
- Power supply 400V/3Ph/50Hz or 415V/3Ph 50 Hz or 460V/3Ph /60 Hz
- Low voltage control 48 V
- Torque limiter
- Chain collector
- Emergency stop button mushroom-type
- Paint 5 years guaranteed (RAL 7021)
- Variable travelling speed (for hoist with electric trolley)
- 2 years guaranteed
Options Available
- Non-standard power supply (ex.: 230 3ph)
- ACF board for direct control hoist
- Hard-wired control (48V)
- Stainless steel lifting chain and hook
- Self-locking hook
- Time meter
- Radio remote control
- Pendant with 4 or 6 buttons
- Key switch on the pendant
- Travel limit switches
- Non-standard length of power supply cable
- Non-standard power supply plug (4 or 5 poles)
- Rain cover
- Brake manual release
- Food contact oil (NSF H1)
- Gear limit switches 2 or 4 steps
LOREM IPSUM
Electric Chain Hoist
An electric chain hoist equipment for lifting 63 kg to 10,000 kg of material load.

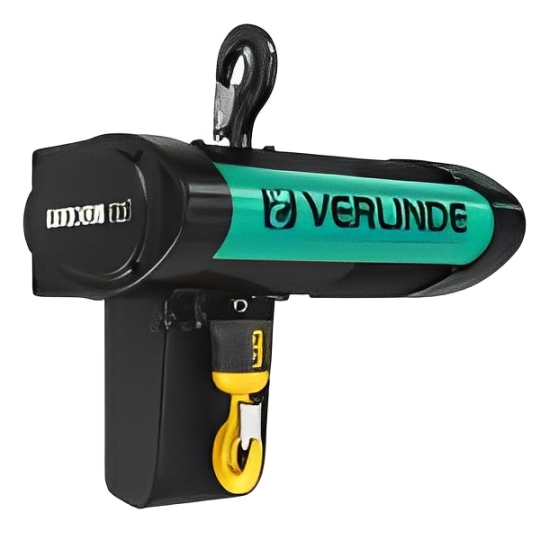

Eurochain VR / VR Vario For Load From 63 to 5000kg
The EUROCHAIN VR electric chain hoist is a groundbreaking innovation created with modern engineering and sleek aesthetics. Its fluid, contemporary lines not only improve its elegance but also reinforce its strength and performance. This next-gen hoist has cutting-edge features and advanced operating concepts, making it adaptable to a huge range of industrial needs.
Technical Characteristics
- New lifting nut concept with intermediate teeth for perfect chain drive
- Torque limiter
- Disk lifting brake
- 3m standard lifting height
- Dual-speed lifting
- Safety electric end of the run for the up and down position
- IP55 lifting and traveling motor
- Thermal protection on lifting motor
- Tropic-proof protection (lifting and steering – 90 to 95 %)
- Galvanized lifting chain
- Disconnectable command cable
- 2-button unit on a fixed hoist or push steering carriage
- 4-button unit on hoist coupled to electric steering carriage
- «Punch» emergency stop button
- 400V/3Ph/50Hz or 415V/3Ph/50 Hz or 460V/3 Ph/60 Hz power supply low voltage 48 V command
- Chain bag
- 70 mm, RAL 7021 epoxy powder paint
- Speed variation on travelling – MS Mode (for hoists with an electric trolley)
- Complies with the CE machine directive
Options Available
- Gear limit switch
- Second brake on lifting motor
- Attachment by eyelet (perpendicular) to replace the upper hook
- Automatic closure lifting hook
- Travelling limit switch
- Short headroom trolley
- Trolley for curved track
- Dual-speed travelling trolley carriage (20 & 5 m/min)
- Slow-speed travelling trolley (3 to 10 m/min)
- High-speed travelling trolley
- Additional button on pendant unit
- Wall-mounted command
- Direct voltage hoist control to replace the low voltage
- Manual brake release
- Rain protection
- Reinforced protection
- Total protection for operation in Zone 22
- Reinforced tropic-proof protection
- Hoist available in a version that complies with CSA standards
