Manual Winches and Hoists
Handchain Hoist VHR – Handlever Block PLV – Manual Lever Winch TLV for loads from 250 to 5,000kg.
Manual Winches and Hoists
Handchain Hoist VHR – Handlever Block PLV – Manual Lever Winch TLV for loads from 250 to 5,000kg.
Technical characteristics
- Machined chain sprockets and gears provide smoother, more efficient operation
- 3 meters standard lift. The hand chain is 0.5 meters less than the lift chain. Non-standard lifts available
- High-strength grade 80 alloy steel load chain with galvanized finish for corrosion resistance (comply with EN 818, safety factor 4)
- VHR’s compact design offers safety and reduced weight. Ideal for construction and maintenance applications
- Rugged construction featuring steel gearcase and handwheel cover
- Hooks are alloy steel, heat treated, and equipped with hook latches and inspection points
Options Available
- VHR with stainless steel load chain
- Chain bag
- VHR with trolley operated by push action on load

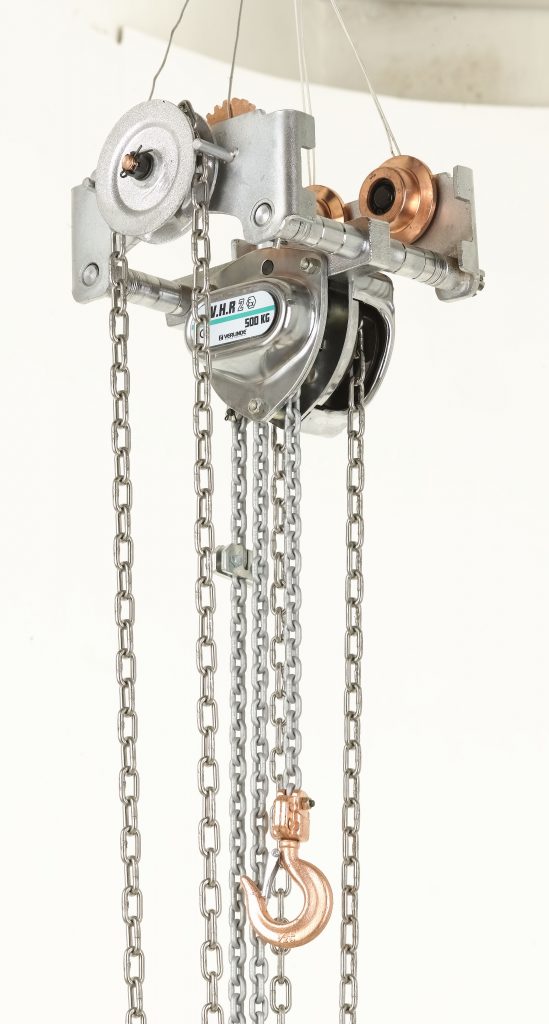

- VHR with short headroom trolley (HPR)
- VHR version Ex – ATEX
- VHR Ex with Ex short headroom trolley (HPR)
LOREM IPSUM
Manual Winches and Hoists
Handchain Hoist VHR – Handlever Block PLV – Manual Lever Winch TLV for loads from 250 to 5,000kg.

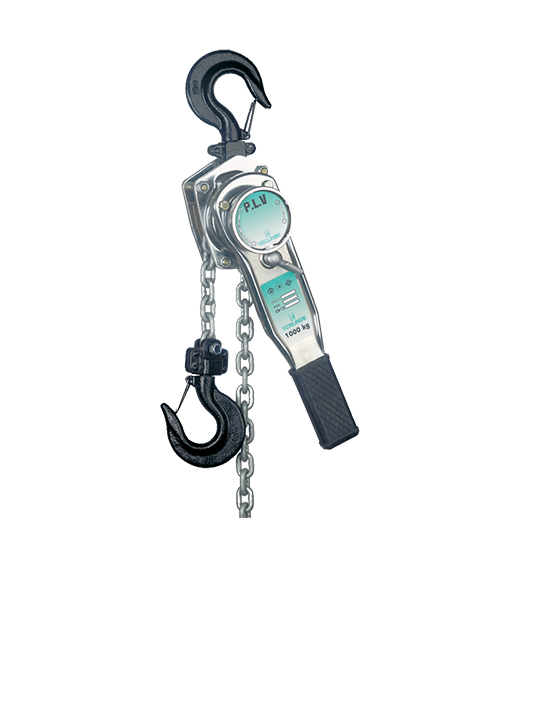

Hand Lever Block PLV For Loads From 250 to 3,000 kg
The VERLINDE Hand Lever Block PLV is made to lift, pull, or drag loads ranging from 250 to 3,000 kg. It is applicable in every industry as it is easy to use and can be used for multiple services on workshops and worksites.
Technical characteristics
- The 4 models are attractive, robust, compact, light and highly maneuverable
- The PLV can be oriented in any direction; the operator can select the lever position, enabling him to have the most excellent possible operational convenience
- PLV lever blocks are highly compact, thanks to the use of special steel
- The hand lever block is a new concept combining aesthetic appeal with reliability
- Chromium-plated hoist and lever
- Strengthened housing offers good protection for mechanisms
- The hand lever block offers a high level of safety with limited weight and routine maintenance
- Unclutching of the chain when under no load
- The hand lever block was tested to approved standards, and a test certificate and guarantee were supplied
- Heavy-duty steel alloy hoisting chain
- Swivellable hooks with safety latches
LOREM IPSUM
Manual Winches and Hoists
Handchain Hoist VHR – Handlever Block PLV – Manual Lever Winch TLV for loads from 250 to 5,000kg.

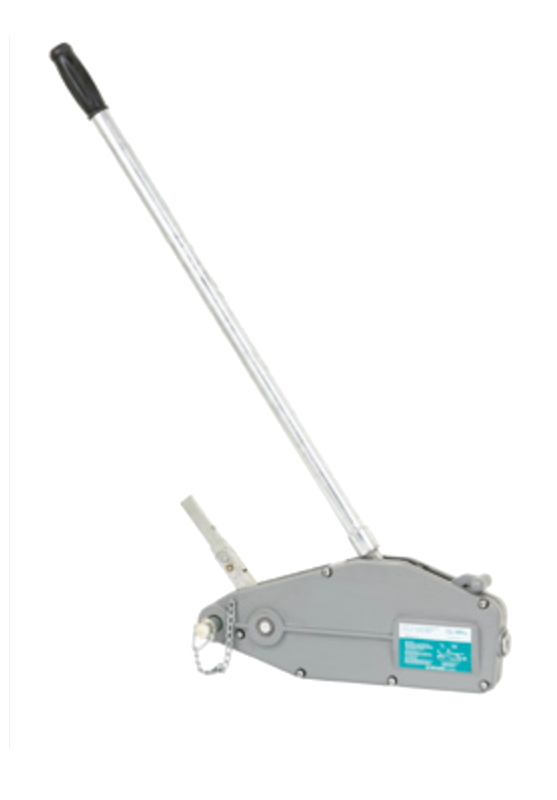

Manual Lever Winch For Loads From 800 to 3,200 kg
The TLV Manual Lever winch is made for lifting and pulling loads over long distances.
Technical characteristics
- Designed for lifting and pulling loads over long distances.
- Built with high-resistance aluminium, it is light and easy to handle.
- The heavy-duty tool is suitable for harsh working conditions.
- Low maintenance makes it suitable for outdoor work.
- Delivered with a 20m / 40m rope.
- Delivered with CE certificate and hook and chain certificate.
